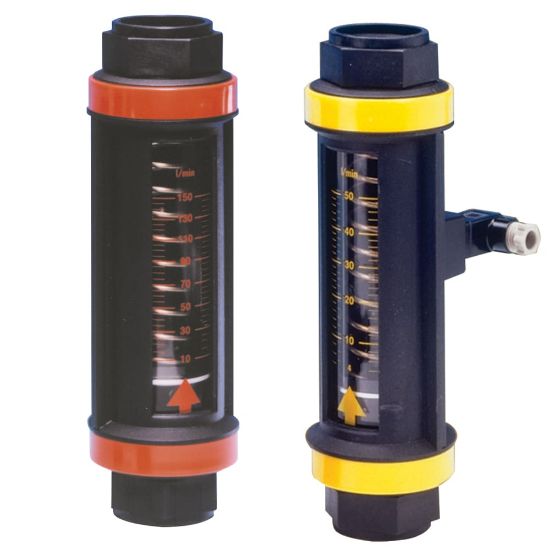

EF7731111121 - Low Pressure Mechanical Flowmeter – Easiflow

The Easiflow line comprises a range of highly economical, inline mechanical flowmeters that provide visual indication of fluid flow in hydraulic systems. Capable of measuring flows ranging from 1 to 150 L/MIN. Maximum allowable working pressure: 10 bar.

Availability:	Backordered Estimated Lead Time: 49 days
Partner Available:	Backordered

SKU EF7731111121

Products specifications

Attribute name	Attribute value
UOM	EA	Switch Type	Magnetically Operated Reed
For Fluid Type	Oil	Flow Rate	2 to 30 l/min
Port Size	1 inch	Seal Material	Nitrile
Ingress Protection Rating	N/A	For Fluid Type	Oil
Industry	Off-road Machinery	Product Style	Flow Meter
Port Type	BSP	Communication Interface	n/a
Operating Pressure	10 bar	Operating Humidity	n/a
ATEX Specifications Met	n/a	Height	106 mm
Length	196 mm	Specifications Met	Pressure Directive
Diameter	60 mm	Body Material	Glass Filled Nylon
Materials of Construction	Borosilicate Glass	Accuracy	+/- 5% FSD
Cycle Time	n/a	Signal Output	AC/DC
Sensing Method	Variable Oriface Flowmeter	Electrical Requirements	YES
Maximum Fluid Temperature	+60 °C	Minimum Fluid Temperature	+5 °C
Flow Rate	2 to 30 L/min
