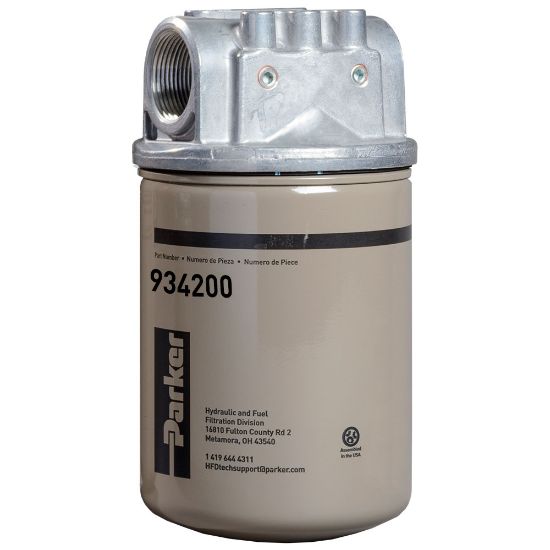

Picture of Low Pressure Spin-On Filters 12AT/50AT Series - 50AT103BBPGN20H

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Low Pressure Spin-On Filters 12AT/50AT Series - 50AT103BBPGN20H

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.
Availability:
Backordered
SKU 50AT103BBPGN20H
$167.98
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASeal MaterialNitrile
OptionsInlet & Outlet, both sides (all ports drilled & tapped)Indicator TypeSold separately
Bypass Valve (psi)25Filter Element3 micron microglass
Flow Rate (gpm)36Port Connection Type1-1/4" NPT ports
Mounting TypeInlineSeal MaterialNitrile
DivisionEngine Mobile Hydraulic and Fuel Filtration DivisionMaximum Operating Temperature225
Filter Element TypeCanisterFor Fluid TypeSuitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at HFF.technical@support.parker.com or call 800-253-1258.
OptionsInlet & Outlet, both sides (all ports drilled & tapped)Flow Rate36
Indicator TypeSold separatelyPressure Rating10.3
Housing MaterialLow Carbon SteelIndicator Pressure Setting20
Bypass Valve Pressure Rating25Weight3.9
Port Type1-1/4" NPT portsCompatible Element934200
Product resources

Literature and Reference Materials
