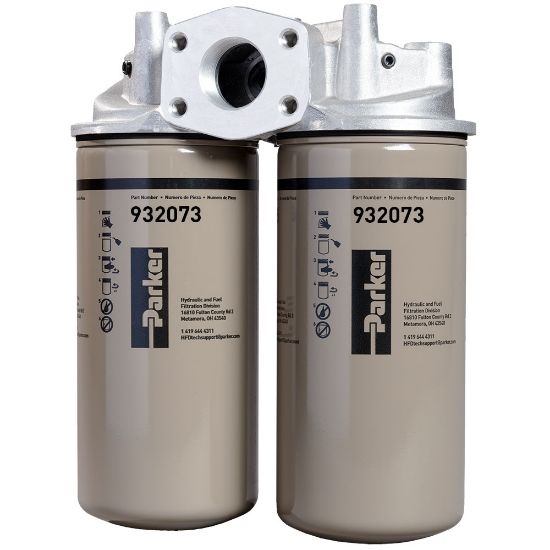

80AT203BBPGY32H - Low Pressure Spin-On Filters 12AT/50AT Series

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU 80AT203BBPGY32H

$346.16/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Indicator Type	Sold separately
Filter Element	3 micron microglass	Bypass Valve (psi)	25 psid bypass
Options	Inlet & Outlet, both sides (all ports drilled & tapped)	Flow Rate (gpm)	80
Seal Material	Nitrile	Port Connection Type	2" SAE Code 61 Flange / 1-1/2" NPT ports
For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at HFF.technical@support.parker.com or call 800-253-1258.	Seal Material	Nitrile
Weight	5.89	Port Type	2" SAE Code 61 Flange / 1-1/2" NPT ports
Indicator Type	Sold separately	Flow Rate	80
Indicator Pressure Setting	1.4	Mounting Type	Inline
Maximum Operating Temperature	107	Options	Inlet & Outlet, both sides (all ports drilled & tapped)
Compatible Element	932073	Filter Element Type	3 micron microglass
Bypass Valve Pressure Rating	1.7 bar
