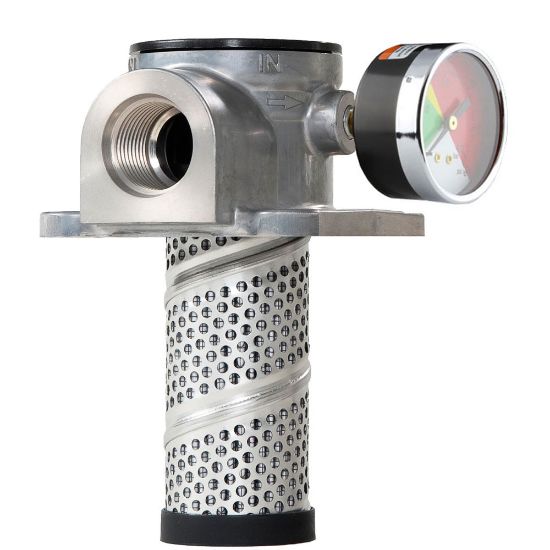

Picture of Low Pressure Tank Top Filters PT Series - PT2110QBGGS121

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Low Pressure Tank Top Filters PT Series - PT2110QBGGS121

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.
Availability:
Backordered
SKU PT2110QBGGS121
$166.11
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAFlow Rate10 gpm (37.8 lpm)
Seal MaterialNitrileOptionsNone
Indicator TypePressure gauge, 25 psiFilter Element Type10Q Microglass
Port Connection TypeSAE-12Bypass Valve Pressure Rating25 psid (1.7 bar)
DivisionEngine Mobile Hydraulic and Fuel Filtration DivisionPressure Rating15 psi
Weight0.8 lbFlow Rate37.8 L/min
Maximum Operating Temperature107.0 °CSeal MaterialNitrile
Bypass Valve Pressure Rating25.0 psidIndicator TypePressure gauge, 25 psi
OptionsTank MountedHousing MaterialAluminum
Compatible Element936752Mounting StyleTank Mounted
Indicator Pressure SettingNo IndicatorFilter Element Type10Q Microglass
For Fluid TypeMineral, Petroleum and Polyalphaolefin (PAO) based fluids
