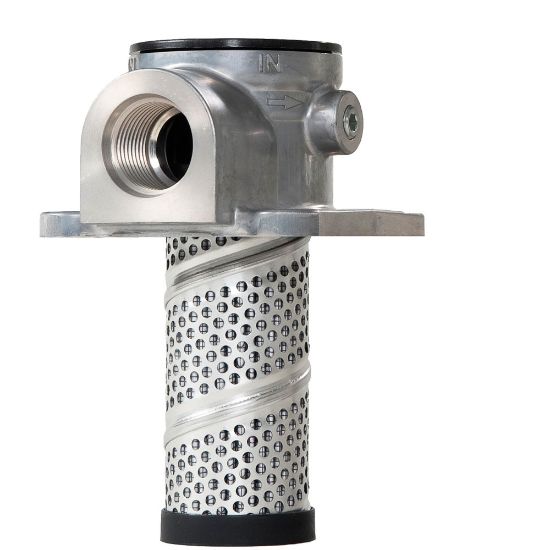

PT2110QBPGS121 - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	7 in stock

SKU PT2110QBPGS121

$140.62/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Options	None
Flow Rate	10 gpm (37.8 lpm)	Seal Material	Nitrile
Filter Element Type	10Q Microglass	Bypass Valve Pressure Rating	25 psid (1.7 bar)
Port Connection Type	SAE-12	Indicator Type	Plugged Ports
Weight	0.36 kg	Seal Material	Nitrile
Flow Rate	10.0 Gal/min	Bypass Valve Pressure Rating	1.7 bar
Maximum Operating Temperature	225.0 °F	Options	Tank Mounted
Mounting Style	Tank Mounted	Compatible Element	936752
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Indicator Type	Plugged ports
Indicator Pressure Setting	No Indicator	Filter Element Type	10Q Microglass
