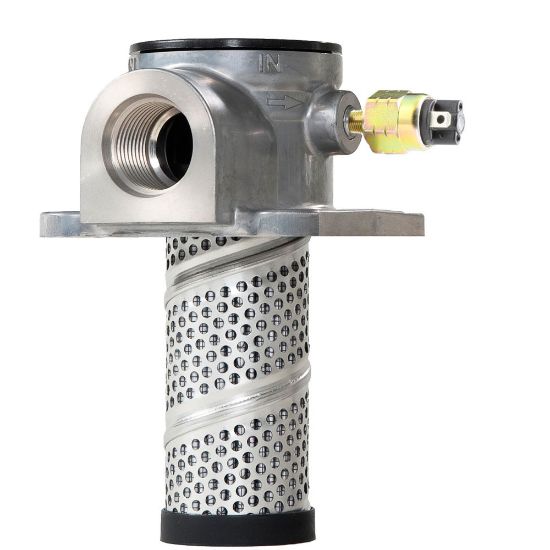

Picture of Low Pressure Tank Top Filters PT Series - PT2110QBSGS161

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Low Pressure Tank Top Filters PT Series - PT2110QBSGS161

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.
Availability:
Backordered
SKU PT2110QBSGS161
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASeal MaterialNitrile
OptionsNonePort Connection TypeSAE-16
Filter Element Type10Q MicroglassIndicator TypePressure Switch
Bypass Valve Pressure Rating25 psid (1.7 bar)Flow Rate10 gpm (37.8 lpm)
Housing MaterialAluminumIndicator TypePressure Switch
Weight0.36 kgSeal MaterialNitrile
OptionsTank MountedMounting StyleTank Mounted
Compatible Element936752Bypass Valve Pressure Rating1.7 bar
Filter Element Type10Q MicroglassIndicator Pressure SettingNo Indicator
For Fluid TypeMineral, Petroleum and Polyalphaolefin (PAO) based fluidsDivisionEngine Mobile Hydraulic and Fuel Filtration Division
Flow Rate37.8 L/minPressure Rating15 psi
Maximum Operating Temperature107.0 °C
