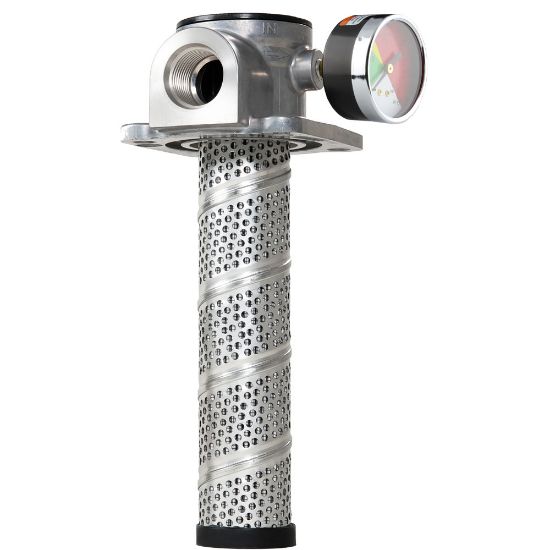

Picture of Low Pressure Tank Top Filters PT Series - PT2202QBGGS12W

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Low Pressure Tank Top Filters PT Series - PT2202QBGGS12W

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.
Availability:
Backordered
SKU PT2202QBGGS12W
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAFlow Rate25 gpm (94.6 lpm)
Port Connection TypeSAE-12Bypass Valve Pressure Rating25 psid (1.7 bar)
Filter Element Type02Q MicroglassSeal MaterialNitrile
Indicator TypePressure gauge, 25 psiOptionsSteel weld ring
OptionsTank MountedMounting StyleTank Mounted
Bypass Valve Pressure Rating1.7 barFilter Element Type02Q Microglass
Flow Rate94.6 L/minFor Fluid TypeMineral, Petroleum and Polyalphaolefin (PAO) based fluids
Compatible Element936754Pressure Rating15 psi
DivisionEngine Mobile Hydraulic and Fuel Filtration DivisionMaximum Operating Temperature107.0 °C
Weight1.07 lbHousing MaterialAluminum
Indicator Pressure SettingSteel Weld RingIndicator TypePressure gauge, 25 psi
Seal MaterialNitrile
Product resources

Literature and Reference Materials
