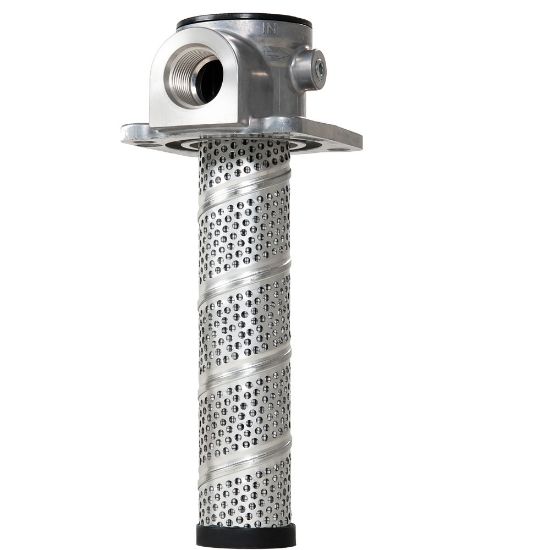

PT2202QBPGS161 - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU PT2202QBPGS161

Products specifications

Attribute name	Attribute value
UOM	EA	Filter Element Type	02Q Microglass
Options	None	Seal Material	Nitrile
Flow Rate	25 gpm (94.6 lpm)	Port Connection Type	SAE-16
Bypass Valve Pressure Rating	25 psid (1.7 bar)	Indicator Type	Plugged Ports
Bypass Valve Pressure Rating	25.0 psid	Seal Material	Nitrile
Weight	0.49 kg	Filter Element Type	02Q Microglass
Maximum Operating Temperature	225.0 °F	Options	Tank Mounted
Mounting Style	Tank Mounted	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Flow Rate	94.6 L/min	Indicator Type	Plugged ports
Indicator Pressure Setting	No Indicator	Compatible Element	936754
