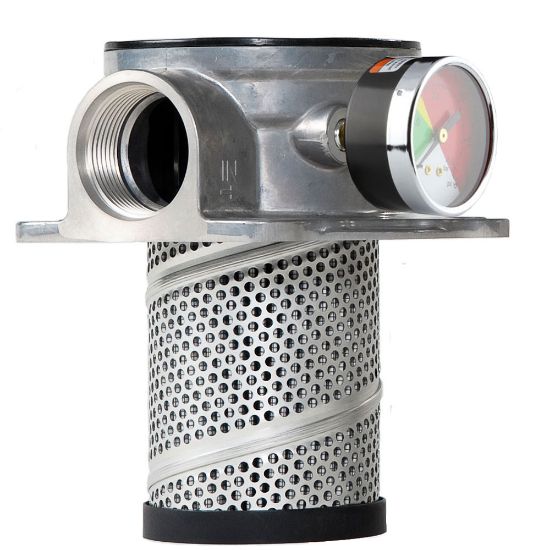

PT4110QBGGS16W - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU PT4110QBGGS16W

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Filter Element Type	10Q Microglass	Bypass Valve Pressure Rating	25 psid (1.7 bar)
Port Connection Type	SAE-16	Options	Steel weld ring
Indicator Type	Pressure gauge, 25 psi	Flow Rate	30 gpm (113.6 lpm)
Seal Material	Nitrile	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Filter Element Type	10Q Microglass	Bypass Valve Pressure Rating	1.7 bar
Maximum Operating Temperature	107.0 °C	Weight	0.81 kg
Options	Tank Mounted	Indicator Type	Pressure gauge, 25 psi
Mounting Style	Tank Mounted	Indicator Pressure Setting	Steel Weld Ring
Flow Rate	113.6 L/min	Compatible Element	936744
