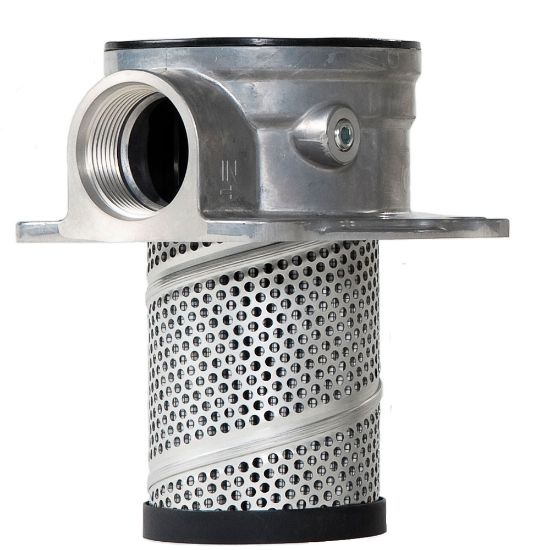

Picture of Low Pressure Tank Top Filters PT Series - PT4110QBPGS16W

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Low Pressure Tank Top Filters PT Series - PT4110QBPGS16W

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.
Availability:
Backordered
SKU PT4110QBPGS16W
$286.34
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASeal MaterialNitrile
Filter Element Type10Q MicroglassBypass Valve Pressure Rating25 psid (1.7 bar)
Port Connection TypeSAE-16Indicator TypePlugged Ports
OptionsSteel weld ringFlow Rate30 gpm (113.6 lpm)
Housing MaterialAluminumSeal MaterialNitrile
For Fluid TypeMineral, Petroleum and Polyalphaolefin (PAO) based fluidsDivisionEngine Mobile Hydraulic and Fuel Filtration Division
Filter Element Type10Q MicroglassBypass Valve Pressure Rating1.7 bar
Maximum Operating Temperature107.0 °CWeight1.79 lb
OptionsTank MountedIndicator TypePlugged ports
Mounting StyleTank MountedPressure Rating15 psi
Indicator Pressure SettingSteel Weld RingFlow Rate30.0 Gal/min
Compatible Element936744
