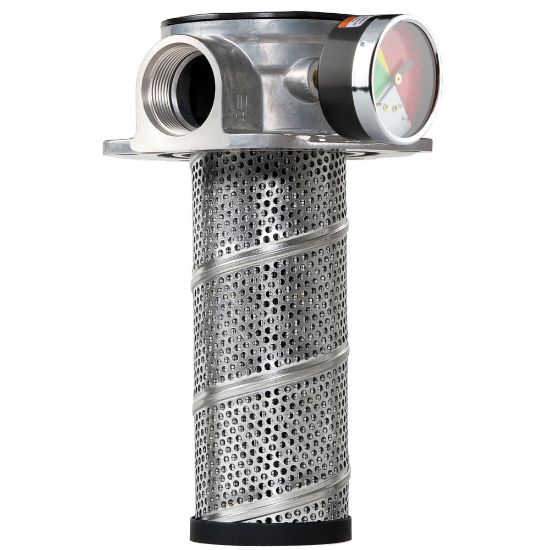

PT4202QBGGS201 - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU PT4202QBGGS201

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Options	None	Filter Element Type	02Q Microglass
Bypass Valve Pressure Rating	25 psid (1.7 bar)	Indicator Type	Pressure gauge, 25 psi
Flow Rate	50 gpm (189.3 lpm)	Port Connection Type	SAE-20
Seal Material	Nitrile	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Filter Element Type	02Q Microglass	Bypass Valve Pressure Rating	1.7 bar
Maximum Operating Temperature	225.0 °F	Indicator Pressure Setting	No Indicator
Weight	0.98 kg	Options	Tank Mounted
Indicator Type	Pressure gauge, 25 psi	Mounting Style	Tank Mounted
Flow Rate	189.3 L/min	Compatible Element	936746
