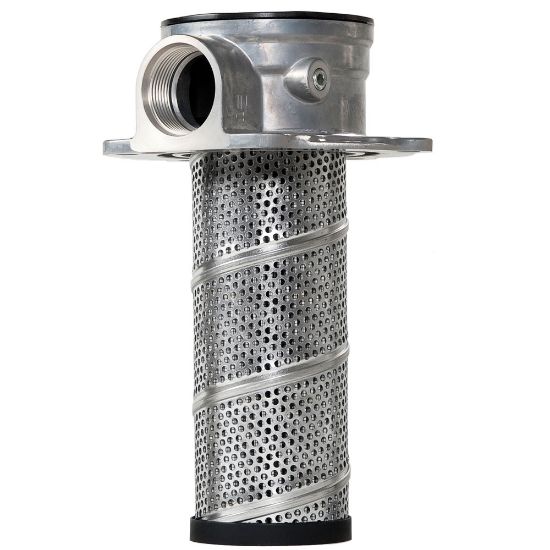

Picture of Low Pressure Tank Top Filters PT Series - PT4205QBPGS16W

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Low Pressure Tank Top Filters PT Series - PT4205QBPGS16W

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.
Availability:
Backordered
SKU PT4205QBPGS16W
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASeal MaterialNitrile
OptionsSteel weld ringBypass Valve Pressure Rating25 psid (1.7 bar)
Indicator TypePlugged PortsPort Connection TypeSAE-16
Flow Rate50 gpm (189.3 lpm)Filter Element Type05Q Microglass
Filter Element Type05Q MicroglassHousing MaterialAluminum
Bypass Valve Pressure Rating1.7 barMounting StyleTank Mounted
Indicator Pressure SettingSteel Weld RingFlow Rate189.3 L/min
OptionsTank MountedCompatible Element936747
Maximum Operating Temperature225.0 °FWeight2.17 lb
For Fluid TypeMineral, Petroleum and Polyalphaolefin (PAO) based fluidsIndicator TypePlugged ports
Seal MaterialNitrilePressure Rating10.3 bar
DivisionEngine Mobile Hydraulic and Fuel Filtration Division
