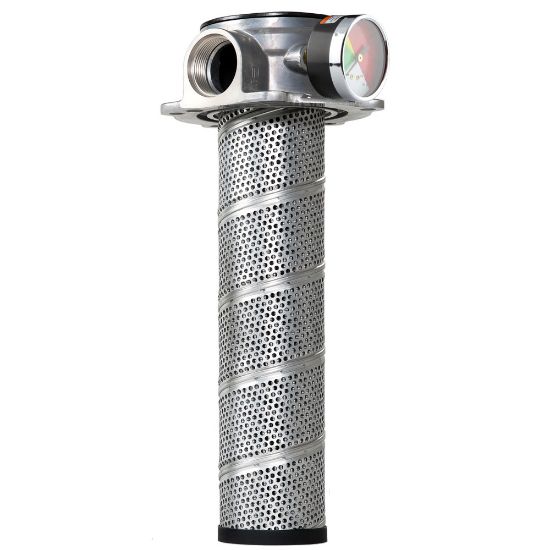

Picture of Low Pressure Tank Top Filters PT Series - PT4310QBGGS16W

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Low Pressure Tank Top Filters PT Series - PT4310QBGGS16W

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.
Availability:
Backordered
SKU PT4310QBGGS16W
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEABypass Valve Pressure Rating25 psid (1.7 bar)
Port Connection TypeSAE-16Indicator TypePressure gauge, 25 psi
Filter Element Type10Q MicroglassSeal MaterialNitrile
Flow Rate55 gpm (208.2 lpm)OptionsSteel weld ring
Maximum Operating Temperature225.0 °FOptionsTank Mounted
Filter Element Type10Q MicroglassWeight1.21 kg
For Fluid TypeMineral, Petroleum and Polyalphaolefin (PAO) based fluidsCompatible Element936878
Pressure Rating10.3 barIndicator TypePressure gauge, 25 psi
Seal MaterialNitrileDivisionEngine Mobile Hydraulic and Fuel Filtration Division
Flow Rate55.0 Gal/minMounting StyleTank Mounted
Housing MaterialAluminumBypass Valve Pressure Rating25.0 psid
Indicator Pressure SettingSteel Weld Ring
