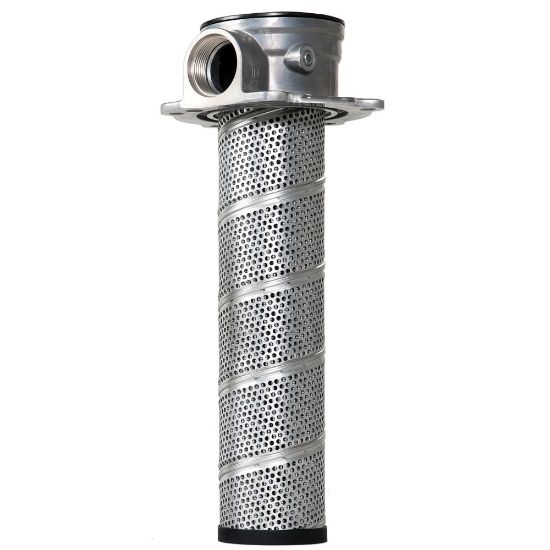

Picture of Low Pressure Tank Top Filters PT Series - PT4320QBPGS201

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Low Pressure Tank Top Filters PT Series - PT4320QBPGS201

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.
Availability:
Backordered
SKU PT4320QBPGS201
$203.88
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAOptionsNone
Flow Rate55 gpm (208.2 lpm)Filter Element Type20Q Microglass
Port Connection TypeSAE-20Seal MaterialNitrile
Bypass Valve Pressure Rating25 psid (1.7 bar)Indicator TypePlugged Ports
Flow Rate55.0 Gal/minDivisionEngine Mobile Hydraulic and Fuel Filtration Division
Weight1.21 kgSeal MaterialNitrile
Compatible Element936879Pressure Rating15 psi
Bypass Valve Pressure Rating1.7 barMaximum Operating Temperature225.0 °F
OptionsTank MountedMounting StyleTank Mounted
Housing MaterialAluminumFilter Element Type20Q Microglass
For Fluid TypeMineral, Petroleum and Polyalphaolefin (PAO) based fluidsIndicator TypePlugged ports
Indicator Pressure SettingNo Indicator
Product resources

Literature and Reference Materials
