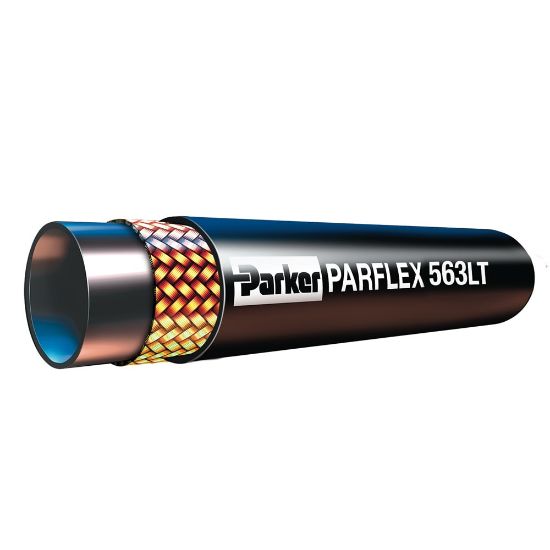

563LT-10 - Low Temperature Hydraulic Hose - 563LT 3,000 psi

Parker 563LT low temperature thermoplastic hydraulic hose is one of Parkers premier fork lift products and features operating temperatures as low as -70°F. Available as a single or twinline hose assembly.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU 563LT-10

$10.20/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	5/8
Design Factor	4:1	Minimum Bend Radius	3-1/2
Size	-10	Maximum Operating Temperature	250
Inside Diameter	5/8	Weight	0.40
Media	Lubricants (Oils)	Compatible Fitting	43 Series
Minimum Operating Temperature	-50	Outside Diameter	0.970
Specifications Met	SAE 100R17	Hose Inner Tube Material	Copolyester
Hose Reinforcement Material	Braid of High Tensile Steel Wire	Maximum Operating Pressure	3045
Cover Material	Copolyester

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

4660-DuraMax Low Temperature Brochure (PDF)
