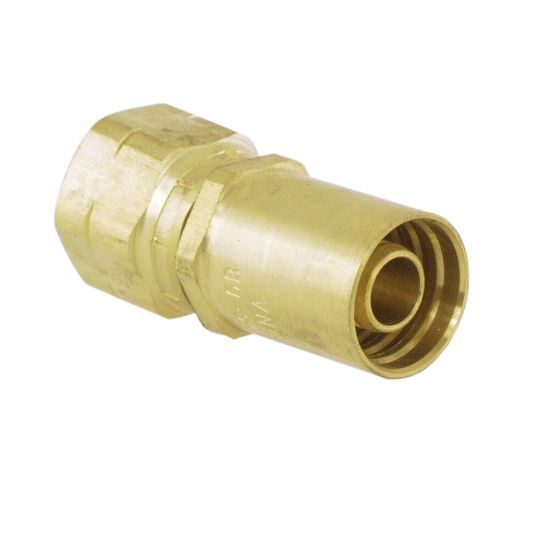

Marine Hose Fittings – MS Series - 1TFMS-6-5B

Name: Marine Hose Fittings – MS Series - 1TFMS-6-5B
SKU: 1TFMS-6-5B

MS series are available in both permanent crimp and field attachable brass constructions for corrosion resistance in marine steering applications.

Availability:

Backordered

SKU 1TFMS-6-5B

$20.45

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Shape	Straight	Connection 1 Hose Inside Diameter	5/16" (I.D.)
Connection 2 Size	9/16"-24	Connection 2 Type	Permanent Crimp, Marine Tube
Brand	PARKER	Division	Parflex Division
Body Material	Brass	Shape	Straight
Technology	Fluid & Gas Handling	Specifications Met	N/A
Division	Parflex Division	Product Type	Hose Fittings
Configuration	Hose to Port	Connection 1 Size	-5 (Size)
Connection 1 Type	Hose	For Fluid Type	Water
Coating	n/a	Fitting Length	43 mm (see drawing legend A)
Connection Length	1-1/16 inch Cut-off allowance	Hex Size	3/4 inch (see drawing legend J)
Industry	Marine	Maximum Operating Pressure	103 bar
Application	Marine	Connection 2 Size	9/16"-24 inch Thread
Connection 2 Type	Tube Connector	Hex Size 2	5/8 inch (see drawing legend H)
