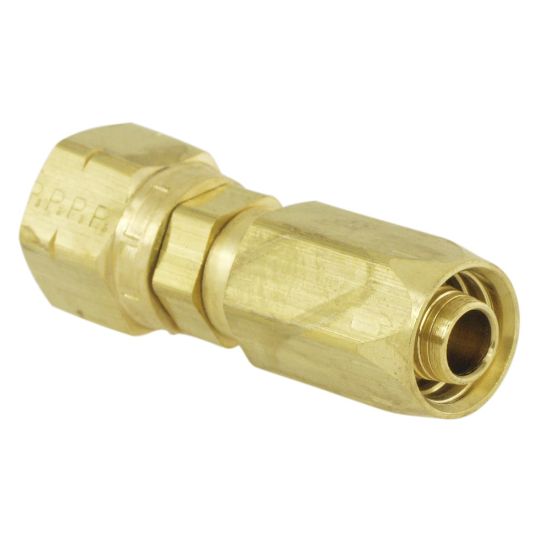

Marine Hose Fittings – MS Series - 208MS-6-5B

Name: Marine Hose Fittings – MS Series - 208MS-6-5B
SKU: 208MS-6-5B

MS series are available in both permanent crimp and field attachable brass constructions for corrosion resistance in marine steering applications.

Availability:

Backordered

SKU 208MS-6-5B

$23.00

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Shape	Straight	Connection 2 Size	5/8"-18
Connection 1 Hose Inside Diameter	5/16" (I.D.)	Connection 2 Type	Field Attachable, Female SAE 45° - Swivel
Brand	PARKER	Division	Parflex Division
Body Material	Brass	Shape	Straight
Technology	Fluid & Gas Handling	Specifications Met	N/A
Division	Parflex Division	Product Type	Hose Fittings
Configuration	Hose to Port	Connection 1 Type	Hose
Connection 1 Size	5/16 inch Hose I.D.	Coating	n/a
Hex Size	13/16 inch (see drawing legend H)	Connection 2 Size	5/8"-18 inch Thread
Hex Size 1	5/8 inch (see drawing legend J)	Connection Length	33 mm
Industry	Marine	Application	Medium Pressure Hydraulics
For Fluid Type	Petroleum Hydraulic Fluids	Maximum Operating Pressure	103 bar
Fitting Length	2.06 inch	Connection 2 Type	Field Attachable
Hex Size 2	5/8 inch (see drawing legend W)
