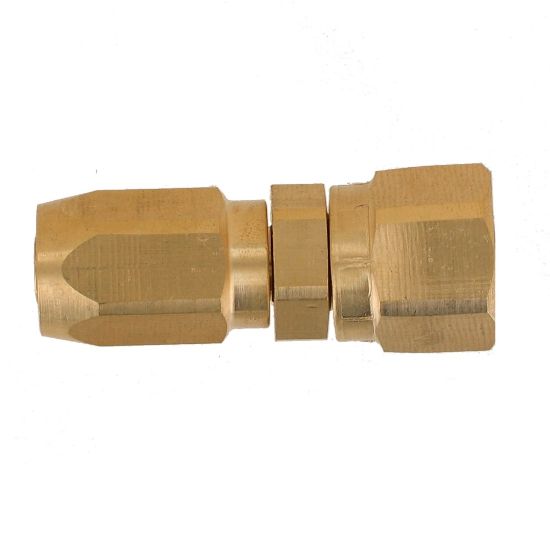

2TFMS-6-5B - Marine Hose Fittings – MS Series

MS series are available in both permanent crimp and field attachable brass constructions for corrosion resistance in marine steering applications.

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	96 in stock

SKU 2TFMS-6-5B

$28.79/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Shape	Straight	Connection 1 Hose Inside Diameter	5/16" (I.D.)
Connection 2 Size	9/16"-24	Connection 2 Type	Field Attachable, Marine Tube
Body Material	Brass	Shape	Straight
Specifications Met	N/A	Configuration	Hose to Port
Connection 1 Type	Hose	Hex Size	3/4 inch (see drawing legend H)
Coating	n/a	Maximum Operating Pressure	1500 psi (Dependent on hose)
Hex Size 1	5/8 inch (see drawing legend J)	Connection Length	33 mm
Connection 1 Size	8 mm	Industry	Marine
Fitting Length	51 mm (see drawing legend A)	Connection 2 Size	9/16"-24 inch Thread
Connection 2 Type	Tube Connector	For Fluid Type	Lubricants (Oils)
Hex Size 2	5/8 inch (see drawing legend W)
