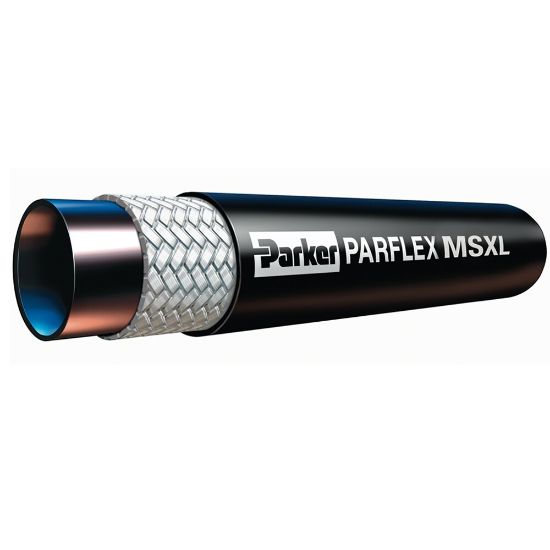

MSXL-5 - Marine Hose – MSXL Hydraulic Hose for Steering 1500 psi

MXSL hydraulic hose is specifically designed for marine steering systems. Sea water resistant.

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	1177 in stock

SKU MSXL-5

$4.26/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	5/16
Minimum Operating Temperature	-40 °F	Maximum Operating Temperature	85 °C
Design Factor	4:1	Maximum Operating Pressure	1500 psi
Minimum Bend Radius	2-1/4 inch	Cover Material	Polyurethane
Hose Inner Tube Material	Polyamide (PA)	Weight	0.05 lb/ft
Media	Petroleum Hydraulic Fluids	Inside Diameter	8 mm
Size	-5	Outside Diameter	0.500 inch
Hose Reinforcement Material	Aramid Fiber	Compatible Fitting	MS Series (permanent only)
