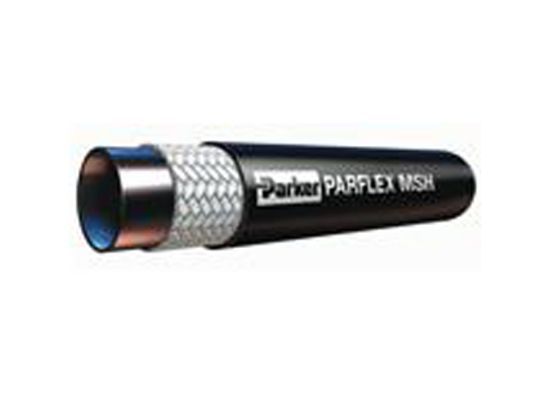

Marine Hose – Steering - MSH-5

Name: Marine Hose – Steering - MSH-5
SKU: MSH-5

With fast, accurate response and a corrosion resistant thermoplastic construction, the Parker MSH marine hose is ideal for marine hydraulic steering systems. MSH hose is salt water resistant and 1000 psi.

Availability:

Backordered

SKU MSH-5

$2.77

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	5/16
Size	-5	Hose Inner Tube Material	Polyamide (PA)
Inside Diameter	5/16 inch	Cover Material	Polyurethane
Weight	0.05 lb/ft	Maximum Operating Temperature	200 °F
Hose Reinforcement Material	Fiber	Media	Petroleum Hydraulic Fluids
Design Factor	4:1	Minimum Operating Temperature	-40 °C
Maximum Operating Pressure	6.9 MPa	Compatible Fitting	MS Series
Division	Parflex Division	Outside Diameter	0.480 inch
Minimum Bend Radius	57 mm	Application	Hydraulics
Material	Thermoplastic	Pkg Qty/UOM	600 FT
Mating Fitting Series	108MS, 208MS	Inner Diameter	0.313 Inch
UOM	FT	Working Pressure	1000 PSI (70 bar)
Pkg Qty	600	Mating Fitting Series	108MS, 208MS
Series	MSH	Hose Pressure Range	Medium
Inner Diameter Inch/mm	Inch	Working Pressure Range	1000 to 1999 PSI (69 to 138 bar)
Material	Thermoplastic	Inner Diameter	0.313 Inch
Parker Group	Fluid Connector	Inch/Metric	Inch
Application	Marine Steering	Parker Division	Parflex
