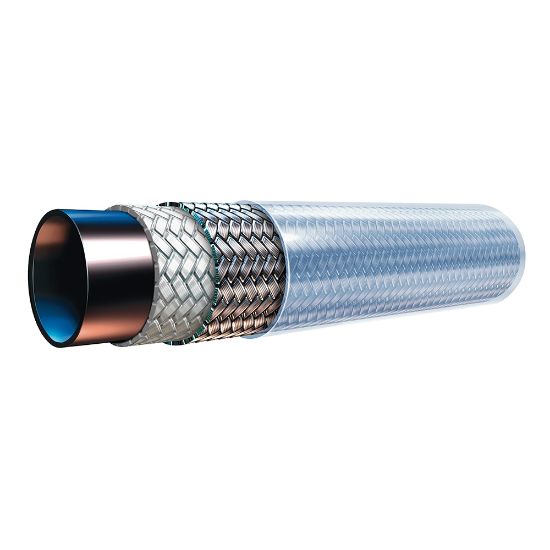

PTH-3-BLK-500 - Marine Power Tilt Hose - PTH Series

Name: PTH-3-BLK-500 - Marine Power Tilt Hose - PTH Series
SKU: PTH-3-BLK-500
Price: 7.93 USD
Availability: InStock

Marine Power Tilt Hose features a polyurethane cover over a compact, abrasion resistant hose. It is designed for power tilt mechanisms, trim tab assemblies and jack plate assemblies.

Availability:

409 in stock

Olivette, MO

409

Partner Available:

525 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU PTH-3-BLK-500

$7.93/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/16
Hose Inner Tube Material	Polyamide (PA)	Cover Material	Polyurethane
Maximum Operating Pressure	3000	Compatible Fitting	92 Series
Weight	0.08	Minimum Operating Temperature	-40
Design Factor	4	Cover Color	Black
Minimum Bend Radius	19	Hose Reinforcement Material	Fiber and Stainless Steel Wire
Inside Diameter	3/16	Specifications Met	N/A
Maximum Operating Temperature	212	Media	Petroleum Hydraulic Fluids
Outside Diameter	0.430	Size	-3
