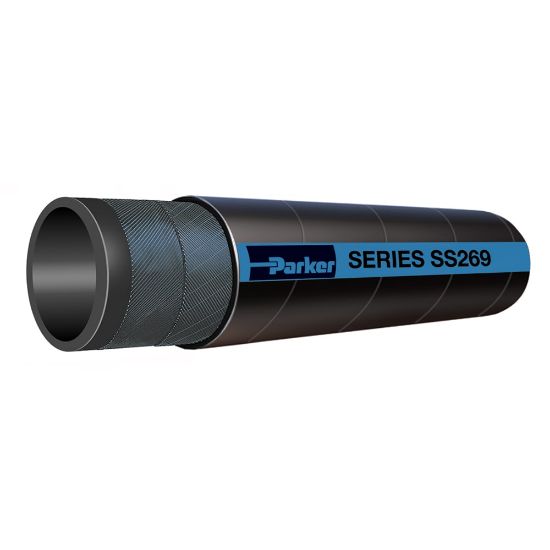

SS269-2250 - Marine Softwall Wet Exhaust Hose, Series SS269

Marine Softwall Wet Exhaust Hose is designed as a flexible connection for exhaust systems to circulate, cool and transfer hot engine water and exhaust gases in marine engine applications to 200°F and 200 psi, Series SS269

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU SS269-2250

$26.76/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Maximum Working Pressure (psi)	200
Hose I.D. (inch)	2-1/4	Specifications Met	SAE J2006R1
Maximum Operating Temperature	200 °F	Minimum Bend Radius	n/a
Hose Inner Tube Material	Black	Hose Reinforcement Material	4 Plies of Textile
Weight	0.56 kg	Minimum Operating Temperature	-40 °C
Cover Structure	Wrapped	Media	Water
Cover Color	Black	Outside Diameter	2.819 inch
Package Type	Coil	Maximum Operating Pressure	200 psi
Cover Material	Nitrile	Length per Package	25 ft
Inside Diameter	57.2 mm

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
