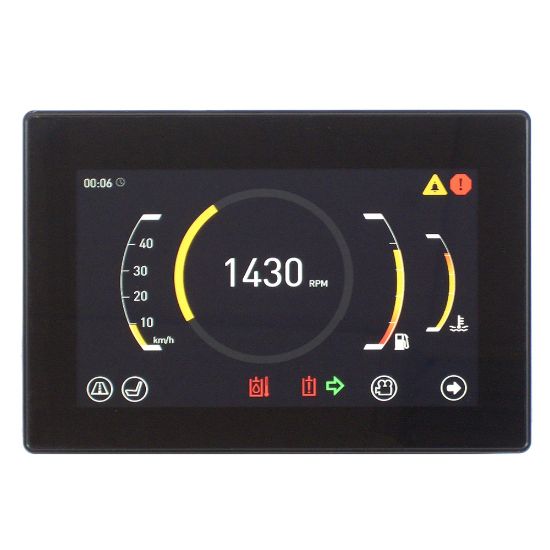

20077771 - Master Display module - IQAN-MD4

Name: 20077771 - Master Display module - IQAN-MD4
SKU: 20077771
Price: 4324.40 USD
Availability: InStock

Note: This product is not recommended for new designs.

Availability:

110 in stock

Kansas City, KS	108
TOPEKA, KS	2

Partner Available:

122 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 20077771

$4,324.40/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Model Number	MD4-7-T1E2
Power Supply Voltage	9 to 32 VDC	Specifications Met	2004/108/EC
Number of Outputs	4	Maximum Operating Temperature	60 °C
Communication Interface	4x CAN	Electrical Connection	Deutsch DTM
Number of Inputs	10	Minimum Operating Temperature	-30 °C
Display Type	7" Color TFT with PCAP Touchscreen	Ingress Protection Rating	65
