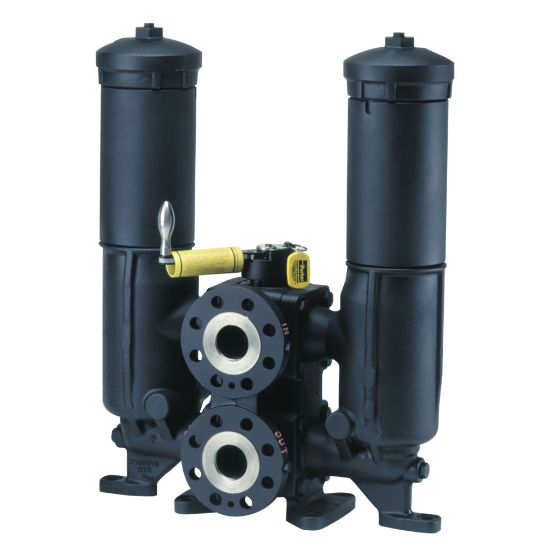

MPD210QEM2E225B21 - Medium Pressure Inline Duplex Filter MPD Series

The Parker MPD's innovative modular design provides solutions across a broad range of industrial applications. Allowable operating pressure of 1200 PSI/82.8 Bar and capable of flows up to 150 GPM/581 LPM depending on viscosity.

Availability:	Backordered Estimated Lead Time: 49 days
Partner Available:	Backordered

SKU MPD210QEM2E225B21

Products specifications

Attribute name	Attribute value
UOM	EA	Indicator Type	visual auto reset, electrical with DIN 43650 connector
Port Connection Type	2 inch 300 lb RF ANSI Flange (500psi)	Options	None
Micron Rating	10Q Microglass	Flow Rate	150 gpm (567.8 lpm)
Seal Material	Nitrile	Bypass Valve Pressure Rating	25 psi (1.7 bar)
Compatible Element	935520Q	Indicator Type	visual auto reset, electrical with DIN 43650 connector
Seal Material	Nitrile	Flow Rate	567.8 L/min
Micron Rating	10Q Microglass	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Weight	129 kg	Options	None
Maximum Operating Temperature	71.0 °C	Indicator Pressure Setting	1.7 bar
Port Type	2 inch 300 lb RF ANSI Flange (500psi)	Filter Element Type	Coreless
Product Style	Hydraulic Filter	Bypass Valve Pressure Rating	1.7 bar
Mounting Style	Inline
