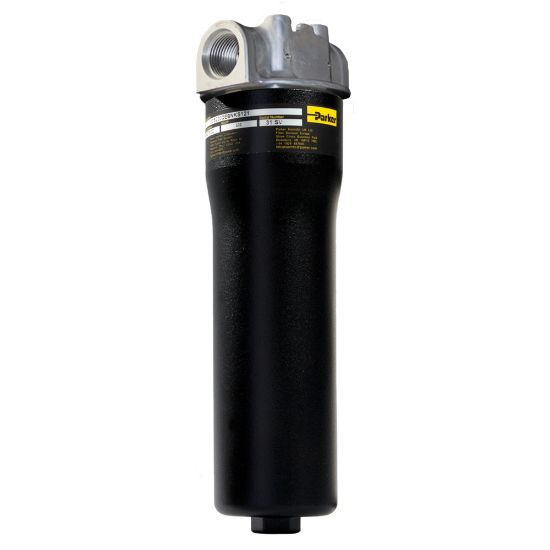

Picture of Medium Pressure Inline Filter 12CS/50CS Series - 12CS202QEBNKS121

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Medium Pressure Inline Filter 12CS/50CS Series - 12CS202QEBNKS121

The Parker 12CS/50CS Coreless Medium Pressure Spin-On Filter Series are the Smart Alternative to Spin-on Cans. Max allowable operating pressure of 500 PSI/34.5 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.
Availability:
Backordered
SKU 12CS202QEBNKS121
$218.95
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAOptionsNo options
Flow Rate25 gpm (95 lpm)Micron Rating02Q Microglass
Seal MaterialNitrileIndicator TypeNo indicator
Port Connection TypeSAE-12 integral threadsBypass Valve Pressure Rating50 psid (3.5 bar)
Weight3 lbs (1.4 kg)OptionsNo options
Flow Rate95.0 L/minPort TypeSAE-12 integral threads
Product TypeHydraulic FilterMicron Rating02Q Microglass
Product StyleHydraulic FilterSeal MaterialNitrile
For Fluid TypeMineral, Petroleum and Polyalphaolefin (PAO) based fluidsIndicator TypeNo indicator
Mounting StyleInlinePressure Rating500 psi
Housing MaterialBowl - wrought aluminum; Head - cast aluminumCompatible Element940765Q
DivisionEngine Mobile Hydraulic and Fuel Filtration DivisionFilter Element TypeCoreless
Indicator Pressure Setting50.0 psidBypass Valve Pressure Rating3.5 bar
Maximum Operating Temperature107.0 °C
