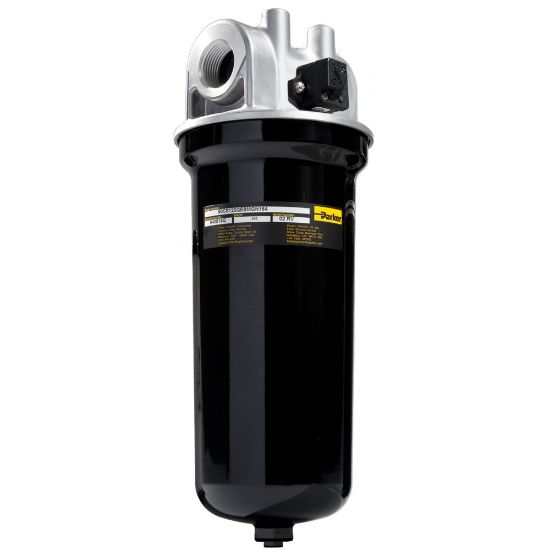

Picture of Medium Pressure Inline Filter 12CS/50CS Series - 50CS105QEBMKN164

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Medium Pressure Inline Filter 12CS/50CS Series - 50CS105QEBMKN164

The Parker 12CS/50CS Coreless Medium Pressure Spin-On Filter Series are the Smart Alternative to Spin-on Cans. Max allowable operating pressure of 500 PSI/34.5 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.
Availability:
Backordered
SKU 50CS105QEBMKN164
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASeal MaterialNitrile
Indicator TypeVisual with push to test, rightBypass Valve Pressure Rating50 psid (3.5 bar)
Micron Rating05Q MicroglassOptionsDrain port
Flow Rate55 GPM (208 LPM)Port Connection Type1" NPT integral threads
Housing MaterialAluminumSeal MaterialNitrile
Product TypeHydraulic FilterFor Fluid TypeMineral, Petroleum and Polyalphaolefin (PAO) based fluids
DivisionEngine Mobile Hydraulic and Fuel Filtration DivisionIndicator TypeVisual with push to test, right
Pressure Rating500 psiFilter Element TypeCoreless
Indicator Pressure Setting3.5 barBypass Valve Pressure Rating50.0 psid
Maximum Operating Temperature107.0 °CProduct StyleHydraulic Filter
Mounting StyleInlineMicron Rating05Q Microglass
Flow Rate55.0 Gal/minWeight2.7 kg
OptionsDrain portPort Type1" NPT integral threads
Compatible Element940817Q
Product resources

Literature and Reference Materials
