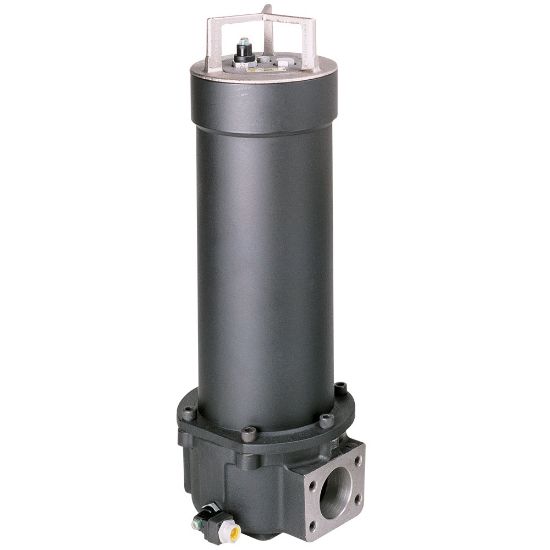

IL82R02QEPP50YY1 - Medium Pressure Inline Filter IL8 Series

Parker's IL8 Inline Filters combines high efficiency Quantumfiber filtration with low cost installation. Allowable operating pressure of 500 PSI/34.5 Bar and capable of flows up to 425 GPM/1609 LPM depending on viscosity.

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU IL82R02QEPP50YY1

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Options	None	Bypass Valve Pressure Rating	50 psi (3.4 bar)
Micron Rating	02QE microglass	Flow Rate	200 gpm (757 lpm)
Indicator Type	no pressure port, indicator/port only	Port Connection Type	SAE 2 inch flange face
Weight	50 lb	Seal Material	Nitrile
Options	None	Filter Element Type	Cartridge
Maximum Operating Temperature	107.0 °C	Product Style	Hydraulic Filter
Mounting Style	Inline	Indicator Pressure Setting	50 psid
For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258	Flow Rate	200.0 Gal/min
Port Type	SAE 2 inch flange face	Indicator Type	no pressure port, indicator/port only
Micron Rating	02QE Microglass	Bypass Valve Pressure Rating	50 psid
Compatible Element	933834Q
