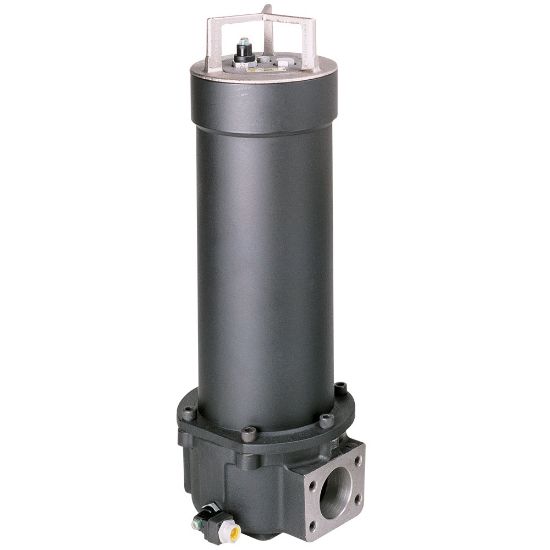

IL82R05QEH2M225PP1 - Medium Pressure Inline Filter IL8 Series

Parker's IL8 Inline Filters combines high efficiency Quantumfiber filtration with low cost installation. Allowable operating pressure of 500 PSI/34.5 Bar and capable of flows up to 425 GPM/1609 LPM depending on viscosity.

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU IL82R05QEH2M225PP1

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Options	None	Bypass Valve Pressure Rating	25 psi (1.7 bar)
Port Connection Type	SAE-24 straight thread	Micron Rating	05QE microglass
Flow Rate	200 gpm (757 lpm)	Indicator Type	electrical with DIN 43650 connector, visual auto reset
Weight	50 lb	Seal Material	Nitrile
Options	None	Filter Element Type	Cartridge
Maximum Operating Temperature	107.0 °C	Product Style	Hydraulic Filter
Mounting Style	Inline	For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258
Port Type	SAE-24 straight thread	Bypass Valve Pressure Rating	25 psid
Flow Rate	200.0 Gal/min	Indicator Type	electrical with DIN 43650 connector, visual auto reset
Compatible Element	933835Q	Micron Rating	05QE Microglass
Indicator Pressure Setting	25 psid
