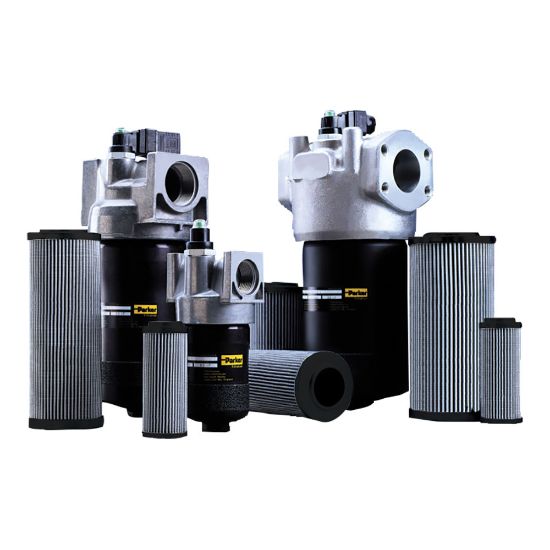

Medium Pressure Inline Filters CN Series - 15CN102QEBE2KS1221

Name: Medium Pressure Inline Filters CN Series - 15CN102QEBE2KS1221
SKU: 15CN102QEBE2KS1221

The CN Series is a compact, cost effective, medium pressure filter designed with coreless filtration technology. CN Series bowl features a permanently fixed core designed to reduce solid waste and minimize disposal costs with every element change out.

Availability:

Backordered

SKU 15CN102QEBE2KS1221

$434.01

Products specifications

Attribute name	Attribute value
UOM	EA	Options	No bypass with drain port
Flow Rate	20 gpm (75.7 lpm)	Seal Material	Nitrile
Indicator Type	Electrical/Visual (DIN43650 Hirschman style connection)	Specifications Met	N/A
Filter Element Type	02Q Microglass	Port Connection Type	SAE-12 straight threads
Indicator Pressure Setting	50 psi (3.4 bar)	Bypass Valve Pressure Rating	No Bypass
Weight	2.5 lbs (1.13 kg)	Port Type	SAE-12 straight threads
Product Type	Hydraulic Filter	Product Style	Hydraulic Filter
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Mounting Style	Inline
Pressure Rating	1000 psi	Housing Material	Aluminum
Compatible Element	936698Q	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Maximum Operating Temperature	107.0 °C
