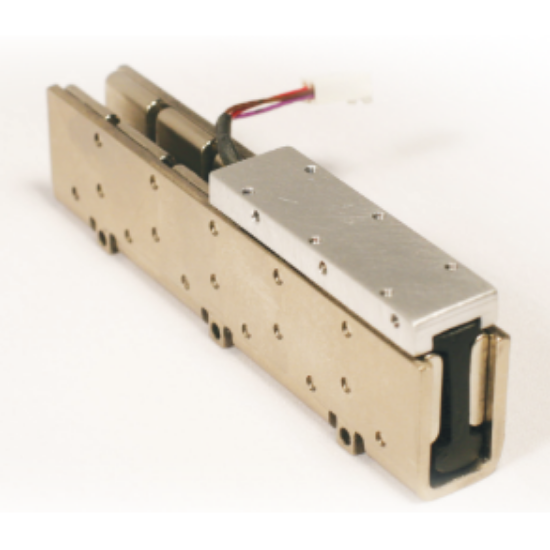

ML18-2E-NC-N1S-1

Manufacturer: Parker Hannifin

Availability:	Backordered Estimated Lead Time: 3 days
Partner Available:	Backordered

SKU ML18-2E-NC-N1S-1

Products specifications

Attribute name	Attribute value
UOM	EA	Thermal Time Constant	8 Min
Peak Current	4.7 Amp	Back EMF	5 V/m/s
Inductance	0.75 mH	Series	R
Maximum Winding Temperature	125 °C	Maximum Bus Voltage	80 VDC
Motor Constant	2.38 N/sqrt(watt)	Number of Poles	2
Continuous Force	6.8 N	Continuous Current	1.11 Amp RMS
Motor	Stepper	Peak Force	20.3 N
Continuous Power	20 W	Peak Power	400 W
Resistance	4.4 Ohm	Force Constant	4.33 N/Amp
