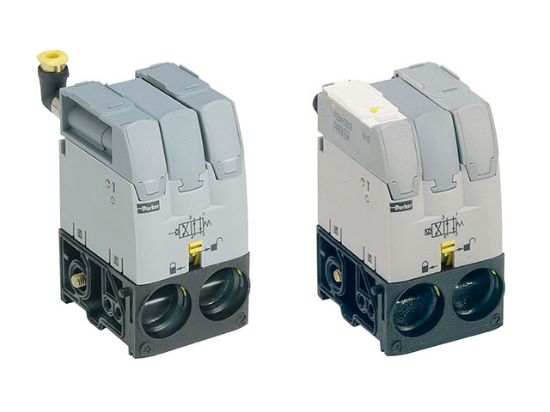

Moduflex T Series - Size 2 Valve - P2M2TCPP

Name: Moduflex T Series - Size 2 Valve - P2M2TCPP
SKU: P2M2TCPP

Parker flexible manifold valve system for individual solenoid wiring for use with integrated Push-to-Connect fittings

Availability:

Backordered

SKU P2M2TCPP

$122.30

Products specifications

Attribute name	Attribute value
UOM	EA	Pkg Qty	1
Operator Type Detail	Double	CV Factor	0.44
Operator Type	Air Piloted	UOM	EA
Override Type	Multi-function	Pilot Supply	Internal
Trade Name	Moduflex	Valve Passages	3-way
Parker Division	Pneumatic	Override Type	Multi-function
Series Type	T Series - Size 2	Series	Moduflex
Operator Type Detail	Double	Operating Temperature	5°F to 140°F (-15°C to 60°C)
Parker Group	Automation	Operator Type	Air Piloted
Solenoid Connection	M8	Offset Return Type	Spring Return
Pneumatic Valve Type	Manifold Valve	CV Factor	0.44
Pilot Supply	Internal	Valve Positions	2-position
Supply Pressure Range	Vacuum to 123 PSIG (Vacuum to 8.3 bar)	Center Condition	Dual Valve, NO/NO w/Exhaust Check
