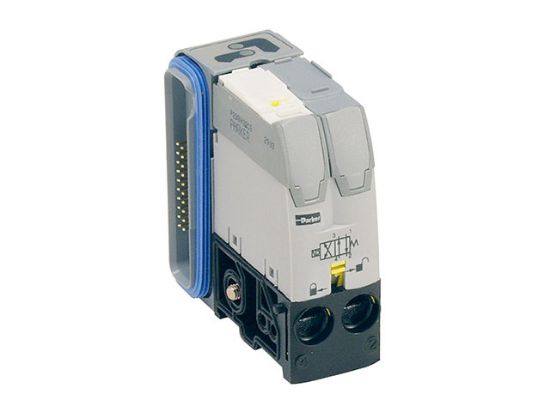

Moduflex V Series - Size 1 Valve - P2M1V3ES2CV

Name: Moduflex V Series - Size 1 Valve - P2M1V3ES2CV
SKU: P2M1V3ES2CV

Parker flexible manifold valve system with collective or fieldbus electrical connections for use with integrated Push-to-Connect fittings

Availability:

Backordered

SKU P2M1V3ES2CV

$106.14

Products specifications

Attribute name	Attribute value
UOM	EA	Pkg Qty	1
Pilot Supply	Internal	Solenoid Voltage	24 VDC
UOM	EA	Operator Type Detail	Single
Override Type	Multi-function	CV Factor	0.22
Operator Type	Solenoid	Operator Type	Solenoid
Solenoid Voltage	24 VDC	Valve Passages	3-way
Override Type	Multi-function	Offset Return Type	Spring Return
Solenoid Connection	Collective Wiring	Pneumatic Valve Type	Manifold Valve
CV Factor	0.22	Series	Moduflex
Valve Positions	2-position	Supply Pressure Range	Vacuum to 123 PSIG (Vacuum to 8.3 bar)
Pilot Supply	Internal	Operating Temperature	5°F to 140°F (-15°C to 60°C)
Parker Group	Automation	Trade Name	Moduflex
Parker Division	Pneumatic	Operator Type Detail	Single
Series Type	V Series - Size 1	Center Condition	NC w/Exhaust Check
