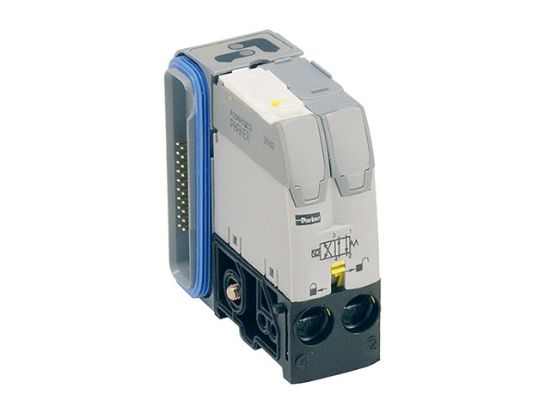

Moduflex V Series - Size 1 Valve - P2M1V4EE2CV

Name: Moduflex V Series - Size 1 Valve - P2M1V4EE2CV
SKU: P2M1V4EE2CV

Parker flexible manifold valve system with collective or fieldbus electrical connections for use with integrated Push-to-Connect fittings

Availability:

Backordered

SKU P2M1V4EE2CV

$144.56

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Override Type	Multi-function	Pilot Supply	Internal
Pkg Qty	1	Operator Type Detail	Double
Operator Type	Solenoid	Solenoid Voltage	24 VDC
CV Factor	0.32	Parker Group	Automation
Operating Temperature	5°F to 140°F (-15°C to 60°C)	Pneumatic Valve Type	Manifold Valve
Solenoid Connection	Collective Wiring	CV Factor	0.32
Supply Pressure Range	Vacuum to 123 PSIG (Vacuum to 8.3 bar)	Pilot Supply	Internal
Series Type	V Series - Size 1	Valve Positions	2-position
Solenoid Voltage	24 VDC	Trade Name	Moduflex
Parker Division	Pneumatic	Valve Passages	4-way
Override Type	Multi-function	Operator Type	Solenoid
Series	Moduflex	Operator Type Detail	Double
