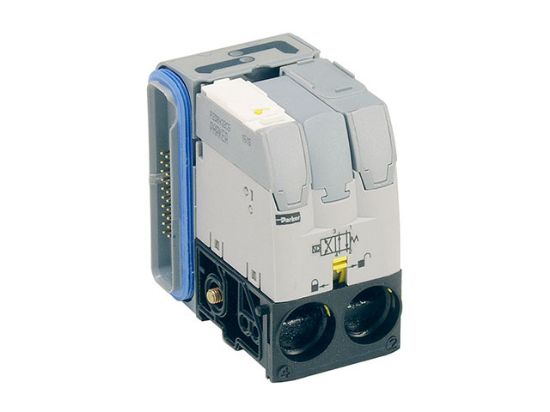

Moduflex V Series - Size 2 Valve - P2M2V3ES2CV

Name: Moduflex V Series - Size 2 Valve - P2M2V3ES2CV
SKU: P2M2V3ES2CV

Parker flexible manifold valve system with collective or fieldbus electrical connections for use with integrated Push-to-Connect fittings

Availability:

Backordered

SKU P2M2V3ES2CV

$122.64

Products specifications

Attribute name	Attribute value
UOM	EA	Pkg Qty	1
Pilot Supply	Internal	Solenoid Voltage	24 VDC
CV Factor	0.44	Operator Type Detail	Single
UOM	EA	Override Type	Multi-function
Operator Type	Solenoid	Operator Type	Solenoid
Override Type	Multi-function	Solenoid Voltage	24 VDC
Valve Passages	3-way	Pneumatic Valve Type	Manifold Valve
Solenoid Connection	Collective Wiring	Offset Return Type	Spring Return
Series	Moduflex	Supply Pressure Range	Vacuum to 123 PSIG (Vacuum to 8.3 bar)
Pilot Supply	Internal	Valve Positions	2-position
CV Factor	0.44	Parker Group	Automation
Operating Temperature	5°F to 140°F (-15°C to 60°C)	Series Type	V Series - Size 2
Operator Type Detail	Single	Trade Name	Moduflex
Parker Division	Pneumatic	Center Condition	NC w/Exhaust Check
