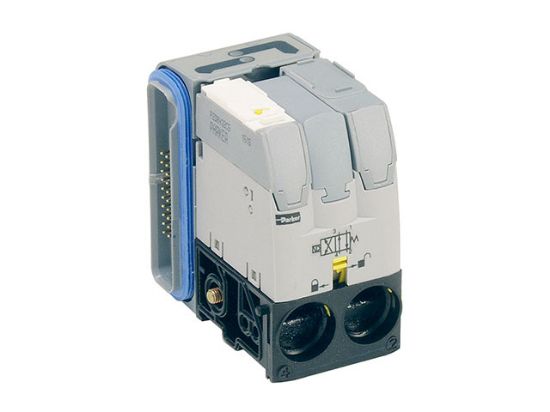

Moduflex V Series - Size 2 Valve - P2M2V4EE2CV

Name: Moduflex V Series - Size 2 Valve - P2M2V4EE2CV
SKU: P2M2V4EE2CV

Parker flexible manifold valve system with collective or fieldbus electrical connections for use with integrated Push-to-Connect fittings

Availability:

Backordered

SKU P2M2V4EE2CV

$164.38

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Override Type	Multi-function	Pilot Supply	Internal
Operator Type	Solenoid	CV Factor	0.8
Pkg Qty	1	Operator Type Detail	Double
Solenoid Voltage	24 VDC	Operating Temperature	5°F to 140°F (-15°C to 60°C)
Parker Group	Automation	Series Type	V Series - Size 2
Pneumatic Valve Type	Manifold Valve	Parker Division	Pneumatic
Pilot Supply	Internal	Valve Positions	2-position
Supply Pressure Range	Vacuum to 123 PSIG (Vacuum to 8.3 bar)	Solenoid Voltage	24 VDC
CV Factor	0.8	Override Type	Multi-function
Valve Passages	4-way	Trade Name	Moduflex
Solenoid Connection	Collective Wiring	Operator Type	Solenoid
Series	Moduflex	Operator Type Detail	Double
