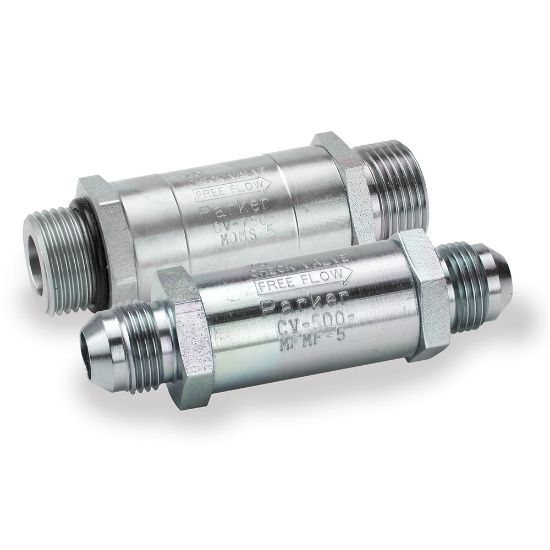

CV-1000-MSMS-5 - Modular, High Flow, Hydraulic In Line Check Valves - CV Series

Parker's, in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

Availability:	Backordered Estimated Lead Time: 24 days
Partner Available:	Backordered

SKU CV-1000-MSMS-5

$247.35/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Inlet Port Size (inch)	1 7/16 - 12 UN
Body Size (inch)	1	Outlet Port Connection Type	Male Seal-Lok
Outlet Port Size (inch)	1 7/16 - 12 UN	Cracking Pressure (psi)	5
Inlet Port Connection Type	Male Seal-Lok	Actuation Type	Mechanical
Seat Type	Metal Seal	Mounting Type	Threaded
Maximum Flow Rate	n/a	Configuration	n/a
Minimum Operating Temperature	250 °F	Maximum Operating Temperature	-40 °F
Connection Size	1-5/16"-12 UN inch	Maximum Operating Pressure	3000 psi
Seal Material	Metal	Flow Direction	n/a
Body Material	Steel	Connection Type	Male Seal-Lok to Male Seal-Lok
