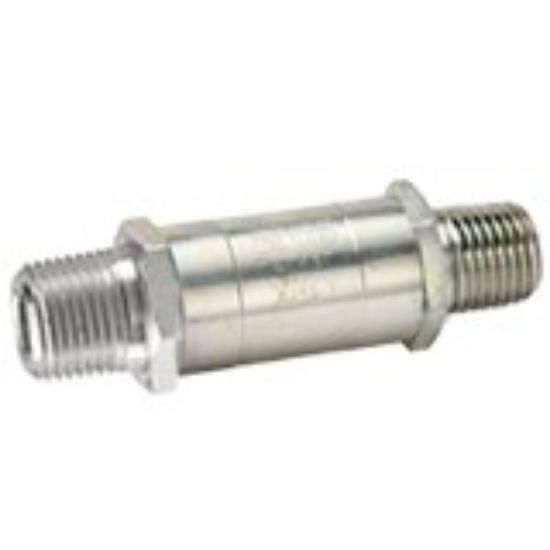

CV-370-MPMP-5 - Modular, High Flow, Hydraulic In Line Check Valves - CV Series

Parker's, in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

Availability:	Backordered Estimated Lead Time: 42 days
Partner Available:	Backordered

SKU CV-370-MPMP-5

$139.86/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Outlet Port Connection Type	Male NPTF
Outlet Port Size (inch)	3/8 - 18 NPTF	Inlet Port Connection Type	Male NPTF
Body Size (inch)	3/8	Inlet Port Size (inch)	3/8 - 18 NPTF
Cracking Pressure (psi)	5	Actuation Type	Mechanical
Connection Type	Male NPT to Male NPT	Seat Type	Metal Seal
Mounting Type	Threaded	Maximum Flow Rate	n/a
Maximum Operating Temperature	-40 °F	Configuration	n/a
Maximum Operating Pressure	3000 psi	Seal Material	Metal
Minimum Operating Temperature	250 °F	Flow Direction	n/a
Body Material	Steel	Connection Size	3/8"-18 NPT inch

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
