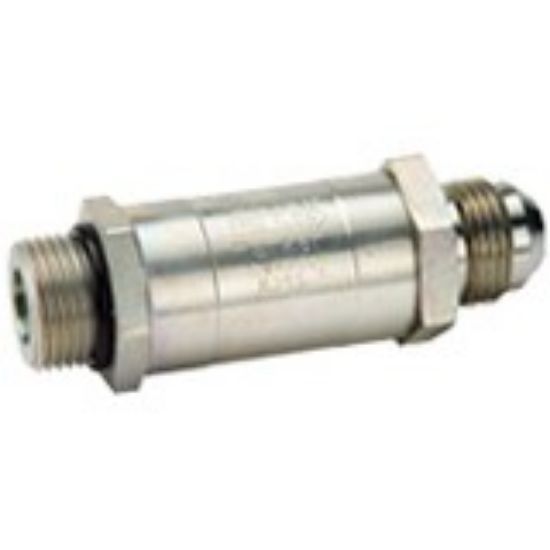

Picture of CV-500-MOMF-5 - Modular, High Flow, Hydraulic In Line Check Valves - CV Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

CV-500-MOMF-5 - Modular, High Flow, Hydraulic In Line Check Valves - CV Series

Parker's, in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.
Availability:
Backordered
Estimated Lead Time: 24 days
Partner Available:1 Limited Stock
SKU CV-500-MOMF-5
$147.33/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAOutlet Port Size (inch)3/4 - 16 UNF
Outlet Port Connection TypeMale JIC 37 degreeBody Size (inch)1/2
Inlet Port Size (inch)3/4 - 16 UNFInlet Port Connection TypeMale SAE O-ring Straight Thread
Cracking Pressure (psi)5Body MaterialSteel
Seal MaterialElastomericActuation TypeMechanical
Seat TypeMetal SealMounting TypeThreaded
Maximum Flow Raten/aConnection TypeMale ORB to Male Flare JIC
Configurationn/aMaximum Operating Temperature-40 °F
Maximum Operating Pressure3000 psiMinimum Operating Temperature250 °F
Connection Size3/4"-16 UNF inchFlow Directionn/a
