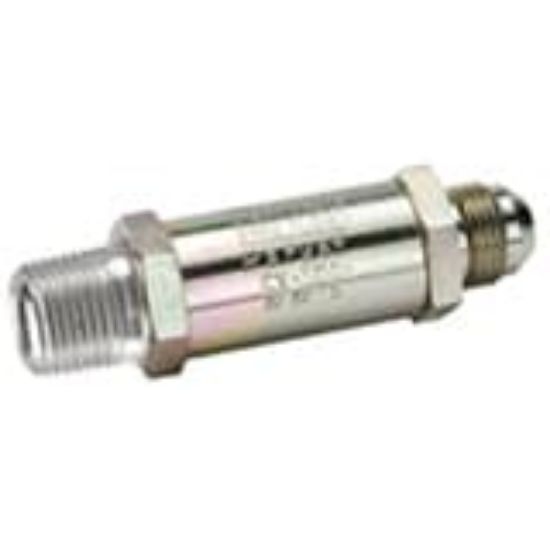

CV-750-MPMF-5 - Modular, High Flow, Hydraulic In Line Check Valves - CV Series

Parker's, in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

Availability:	Backordered Estimated Lead Time: 42 days
Partner Available:	Backordered

SKU CV-750-MPMF-5

$450.90/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Inlet Port Connection Type	Male NPTF
Body Size (inch)	3/4	Cracking Pressure (psi)	5
Outlet Port Connection Type	Male JIC 37 degree	Inlet Port Size (inch)	3/4 - 14 NPTF
Outlet Port Size (inch)	1 1/16 - 12 UN	Maximum Operating Pressure	3000 psi
Seal Material	Metal	Flow Direction	n/a
Connection Type	Male NPT JIC to Male Flare JIC	Body Material	Steel
Actuation Type	Mechanical	Seat Type	Metal Seal
Configuration	n/a	Connection Size	1-1/16"-12 UN inch
Mounting Type	Threaded	Maximum Operating Temperature	-40 °F
Minimum Operating Temperature	250 °F	Maximum Flow Rate	n/a
