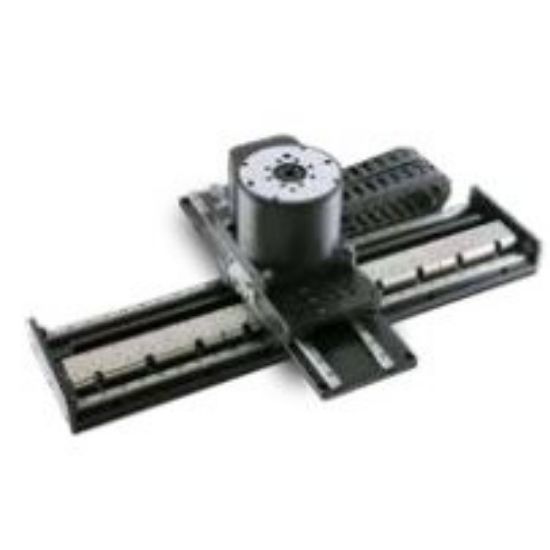

MPR080DAE1H3N

Manufacturer: Parker Hannifin

Availability:	Backordered Estimated Lead Time: 3 days
Partner Available:	Backordered

SKU MPR080DAE1H3N

Products specifications

Attribute name	Attribute value
UOM	EA	Inductance	5.5 mH
Axial Runout	6 µm	Radial Runout	6 µm
Wobble	15 Arc-Sec	Max Velocity	600 RPM
Moving Mass	0.54 kg	Winding Thermal Resistance	2.36 °C / Watt
Travel Degrees	4.7	Stall Current	1.6 Arms
Motor Cable Diameter	4.7 mm	Magnet Pitch	120 Deg
Max Bus Voltage	340 VDC	Diameter	80 mm
Peak Current	5.04 Arms	Stage Mass	1.45 kg
Type	Direct Drive Precision Rotary	Max Winding Temperature	125 °C
Stall Torque Continuous	0.36 Nm	Resistance	6.5 Ohm
Voltage Constant	5.04 Vrms/krpm	Maximum Load	4.0 kg
Torque Constant	0.229 Nm/Arms	Peak Torque	0.9 Nm
