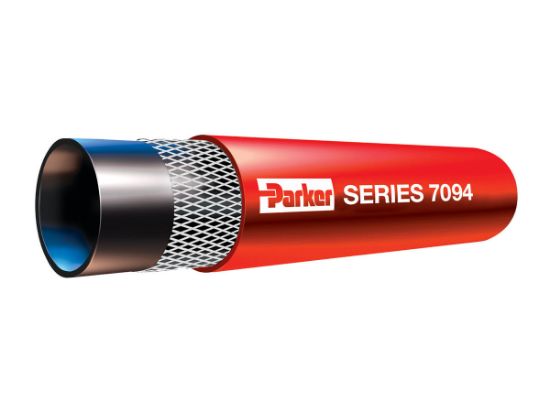

7094-25200 - MPT® II NONCONDUCTIVE MULTIPURPOSE OIL RESISTANT HOSE

MPT II Nonconductive Multipurpose Oil Resistant Hose is designed for transfer of air, mild chemicals, oil and water in applications to 212°F and 300 psi

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	848 in stock

SKU 7094-25200

$1.52/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/4
Color	Red	Maximum Working Pressure (psi)	200
Packaging	Reels	Size	-4
Specifications Met	N/A	Weight	0.1 lb/ft
Minimum Bend Radius	2 inch	Outside Diameter	12.7 mm
Maximum Operating Pressure	200 psi	Inside Diameter	6.4 mm
Media	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	Nominal Hose Inside Diameter	8 mm
Hose Reinforcement Material	Mutiple Plies of Textile	Cover Material	Chloroprene Rubber (CR)
Hose Inner Tube Material	ARPM Class A Oil Resistance	Maximum Operating Temperature	158 °F (Air)
Minimum Operating Temperature	-29 °C	Inner Diameter	0.25 Inch
UOM	FT	Color	Red
Working Pressure	200 PSI (14 bar)	Mating Fitting Series	HY
Package Type	Reel	Pkg Qty/UOM	800 FT
Pkg Qty	800	Parker Group	Fluid Connector
Inch/Metric	Inch	Parker Division	Hose Products
Inner Diameter	0.25 Inch	Inner Diameter Inch/mm	Inch
Color	Red	Hose Pressure Range	Low
Mating End Fitting Series	HY	Series	7094
Trade Name	MPT® II	Hose Category	Multipurpose Oil Resistant

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
