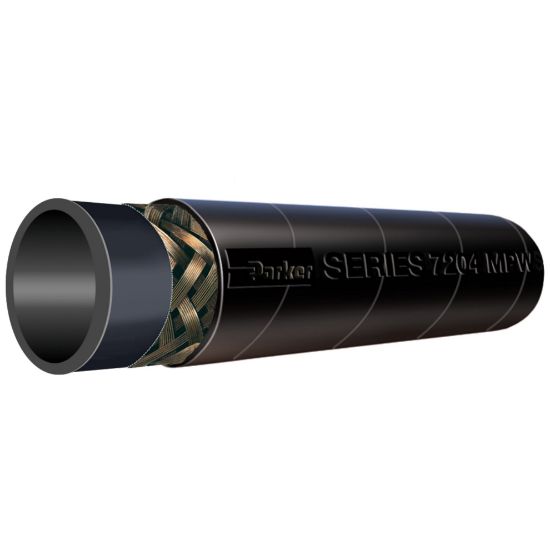

7204-1001 - MPW-1000® High Pressure Wire Braid Multipurpose Oil Resistant Hose, Series 7204

MPW-1000 High Pressure Wire Braid Multipurpose Oil Resistant Hose is designed for air, hot materials, mild chemicals, water, oil, and refined fuels such as biodiesel, diesel, ethanol and gasoline in applications to 300°F and 1000 psi, Series 7204

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	7 in stock

SKU 7204-1001

$18.79/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1
Specifications Met	N/A	Length per Package	500 ft
Cover Color	Black	Inside Diameter	1 inch
Maximum Operating Pressure	68.9 bar	Package Type	Reel
Compatible Fitting	43 Series	Cover Material	Chloroprene Rubber (CR)
Hose Inner Tube Material	Nitrile	Outside Diameter	1.500 inch
Minimum Operating Temperature	-20 °F	Minimum Bend Radius	304.8 mm
Cover Structure	Wrapped	Hose Reinforcement Material	1 Braid of Wire
Media	Hot Asphalt (Tar)	Weight	0.75 lb/ft
Maximum Operating Temperature	70 °C (Saturated Steam to 187 @10 bar)

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
