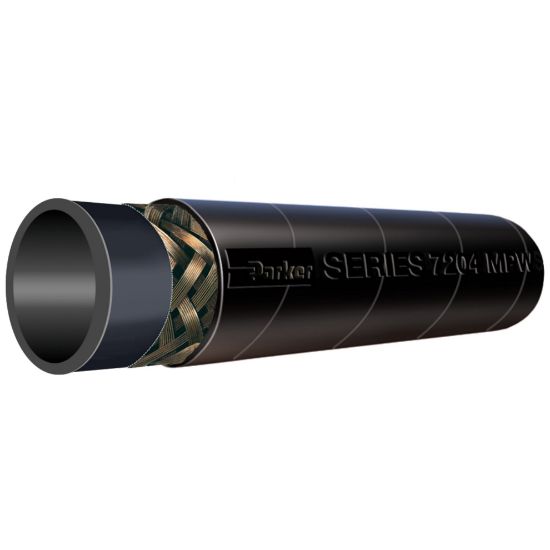

7204-751 - MPW-1000® High Pressure Wire Braid Multipurpose Oil Resistant Hose, Series 7204

Name: 7204-751 - MPW-1000® High Pressure Wire Braid Multipurpose Oil Resistant Hose, Series 7204
SKU: 7204-751
Price: 12.92 USD
Availability: InStock

MPW-1000 High Pressure Wire Braid Multipurpose Oil Resistant Hose is designed for air, hot materials, mild chemicals, water, oil, and refined fuels such as biodiesel, diesel, ethanol and gasoline in applications to 300°F and 1000 psi, Series 7204

Availability:

461 in stock

Olivette, MO

461

Partner Available:

459 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 7204-751

$12.92/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/4
Specifications Met	N/A	Length per Package	500 ft
Cover Color	Black	Inside Diameter	19.1 mm
Maximum Operating Pressure	68.9 bar	Package Type	Reel
Hose Inner Tube Material	Black	Compatible Fitting	43 Series
Media	Fuels (Diesel) - Check fuel type with our catalogue chart.	Cover Material	Chloroprene Rubber (CR)
Minimum Bend Radius	254 mm	Minimum Operating Temperature	-20 °F
Weight	0.52 lb/ft	Cover Structure	Perforated
Hose Reinforcement Material	1 Braid of Wire	Outside Diameter	1.187 inch
Maximum Operating Temperature	70 °C (Saturated Steam to 187 @10 bar)

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
