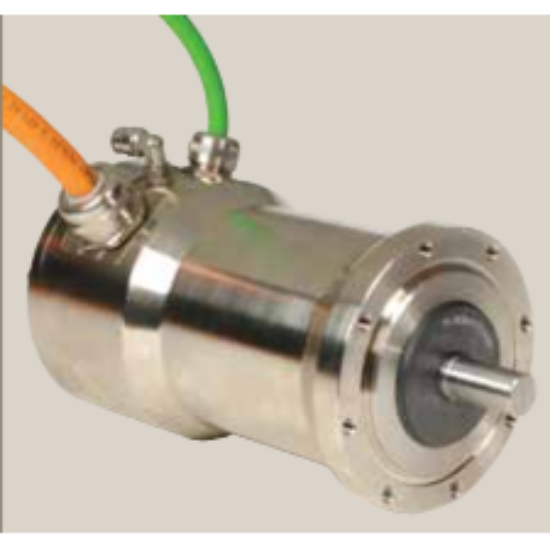

MPW1153C1E-KPSN

Manufacturer: Parker Hannifin

Availability:	Backordered Estimated Lead Time: 3 days
Partner Available:	Backordered

SKU MPW1153C1E-KPSN

Products specifications

Attribute name	Attribute value
UOM	EA	Peak Current	38.2 Arm
Type	Stainless Steel	Rated Shaft Output Power	2.29 kW
Series	MPW	Inductance	4 mH
Peak Torque	22.52 Nm	Resistance	0.49 Ohm
Voltage Constant	40.45 Vrms/krpm	Voltage	230 VAC
Motor	Servo	Rated Torque	5.46 Nm
Current at Rated Speed	8.52 Arm	Torque Constant	0.669 Nm/Arm
Stall Current Continuous	12.1 Arm	Stall Torque Continuous	8.04 Nm
Rated Speed	4013 rpm
