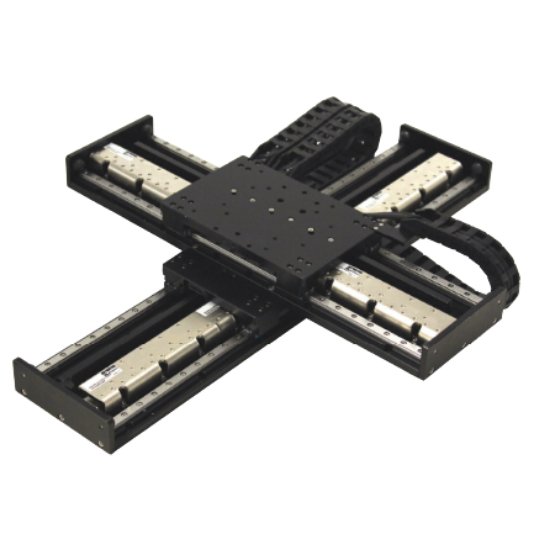

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

MSR100L100SLSM1H1L1CM13X0

Manufacturer: Parker Hannifin

Availability:	Backordered Estimated Lead Time: 3 days
Partner Available:	Backordered

SKU MSR100L100SLSM1H1L1CM13X0

Products specifications

Attribute name	Attribute value
UOM	EA	Inductance	1 mH
Series	MSR	Repeatability	±0.2 µm
Stage Mass	1.45 kg	Straightness and Flatness	±4 µm
Size	100 mm W x 35mm H	Type	Miniature Positioner
Peak Current	3.5 Amp rms	Peak Thrust	33 N
Motor	Linear	Winding Thermal Time Constant	1.3 Min
Continuous Thrust	11 N	Travel	500 mm
Acceleration	3 G	Voltage Constant	7.7 Volts/m/s
Speed	3000 mm/s	Maximum Load	26.5 lb
Carriage Mass	0.34 kg	Accuracy	5 µm
Continuous Current	1.2 A (rms)	Force Constant	9.4 N/A (rms)
Continuous Force	11 N	Magnetic Pitch	40 mm
Motor Thermal Time Constant	15 min	Peak Force	33 N
Resistance	6.3 Ohm	Maximum Bus Voltage	48 VDC
Thrust	16.7 N	Peak	50 N
Rated/Max Winding Temperature	25/125 °C
