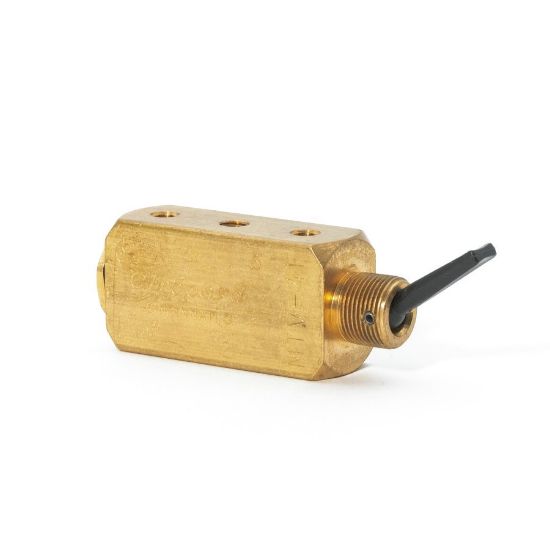

MTV-4F

Name: MTV-4F
SKU: MTV-4F
Price: 36.33 USD
Availability: InStock

Manufacturer: Clippard

Availability:

7 in stock

Olivette, MO

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU MTV-4F

$36.33/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Function	4-Way
Series	MTV	Stem Travel	1/8 inch
Travel Arc	60°	Input	150 psig max.
Force	3.0 lbs. @ 0.0 psig Inlet Pressure	Ports	#10-32 Thread
Thread	#10-32	Operating Temperature Range	32 to 230° F
Seal Material	Nitrile Std., FKM & Krytox Optional	Exhaust	To Atmosphere Through Holes in Body
Medium	Air, Oil, Water	Maximum PSI	150 psig / 10 bar max.
Flow	170 l/min @ 50 psig; 280 l/min @ 100 psig
