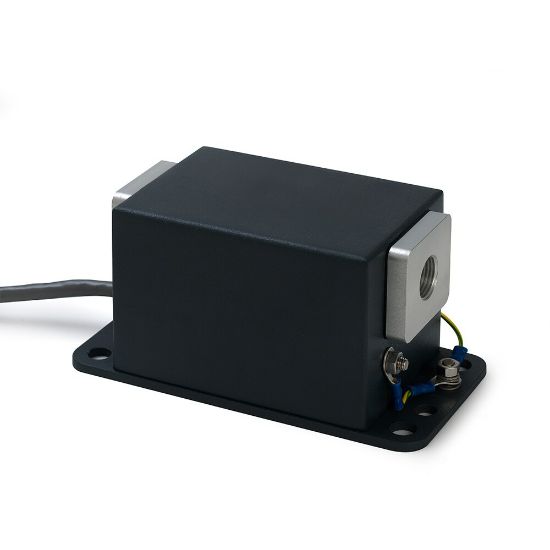

FG-K19567-KW - MWDS - Metal Wear Debris Sensor (ATEX/IECEx Haz-area option)

MWDS differentiates ferrous and non-ferrous metal particles, simultaneously quantifying their metallurgical composition and size in working fluid that has been in contact with machinery parts.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU FG-K19567-KW

$12,189.25/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	ATEX Specifications Met	No
Flow Rate	0.3 to 1.9 ms-1	Sensing Method	Ferrography
Industry	Marine	Cycle Time	30 second
Communication Interface	Modbus	Weight	3 kg
Electrical Requirements	18 to 30 VDC	Sensing Range	Electrical sensing coils (inductance)
Accuracy	±1 Bin range	Sensor Connection	Pre-wired 2 metre LSHF cable
Ingress Protection Rating	IP66	Size	90 mm x 132 mm x 150 mm (HWD)
Operating Pressure	20 barg	Connection Type	1/2" G (BSP) female ports
Wetted Material	PEEK, FKM, anodised aluminium (ATEX: Stainless Steel (316))	Options	TEX/IECEx version: Zone 1 (II 2 G, Ex mb IIB T5, Ta = -40 to + 65°C)
For Fluid Type	Petroleum	Flow Rate	1.3 L/min to 9 L/min
Signal Output	LED display	Features	DNV certified to CG-0339
Accessories Included	Instructions, software, cable harness
