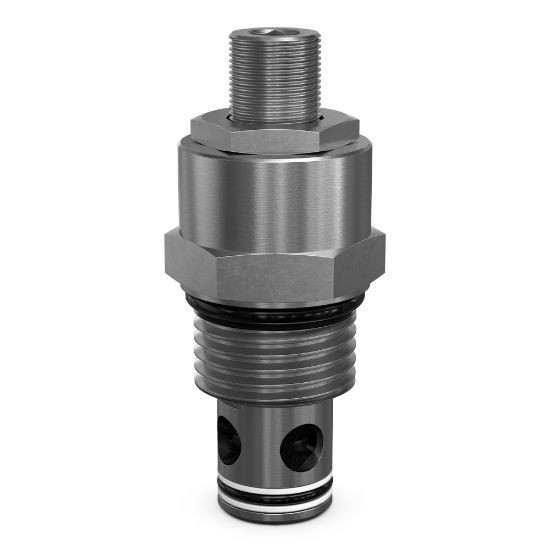

FV101K - Needle Flow Control Valves

Parker offers standard needle valves and needle valves with a reverse free-flow check. Parker’s needle valves are non-compensated adjustable orifices capable of flows up to 225 lpm (60 gpm) and pressures as high as 420 bar (6000 psi).

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU FV101K

$62.64/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	12 GAL/MIN, 45 L/MIN
Maximum Inlet Pressure Rating	3000 PSI, 210 BAR	Needle Type	Coarse
Adjustment Mechanism	Knob	Seal Material	Nitrile
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operation Type	Manually operated
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Connection Size	n/a	Configuration	Needle w/Reverse Check
Maximum Operating Temperature	+121 °C	Needle Type	Coarse
Minimum Operating Temperature	-34 °C	Connection Type	n/a
Maximum Operating Pressure	3000 psi	Cavity Size	C10-2
Maximum Inlet Pressure Rating	210 bar	Seal Material	Nitrile
Maximum Flow Rate	12 Gal/min	Function	2-Way
Flow Rate	12 Gal/min	Actuation Type	Manual
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Installation Torque	16 lb-ft
Weight	0.5 lb	Adjustment Mechanism	Knob
Leak Rate	5 @ 3000 PSI (210 BAR) drops/min	Body Material	n/a
