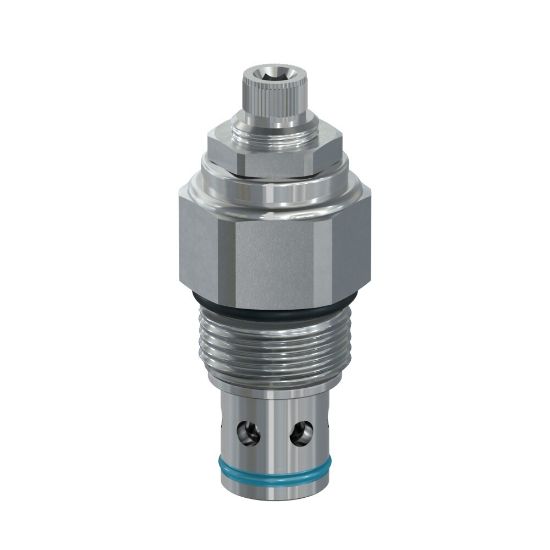

Picture of Needle Flow Control Valves - NVH101FK

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Needle Flow Control Valves - NVH101FK

Parker offers standard needle valves and needle valves with a reverse free-flow check. Parker’s needle valves are non-compensated adjustable orifices capable of flows up to 225 lpm (60 gpm) and pressures as high as 420 bar (6000 psi).
Availability:
Backordered
SKU NVH101FK
$54.81
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAMaximum Inlet Pressure Rating5500 PSI, 380 BAR
Adjustment MechanismKnobNeedle TypeFine
Seal MaterialD-Ring (Standard)Flow Rate16 GAL/MIN, 60 L/MIN
DivisionHydraulic Systems DivisionOperation TypeManually operated
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)Valve MaterialAll parts steel. All operating parts hardened steel
Connection Typen/aMaximum Inlet Pressure Rating380 bar
Cavity SizeC10-2Filter Efficiency RatingISO 4406 18/16/13, SAE Class 4
Adjustment MechanismKnobFor Fluid TypeMineral-based or synthetic hydraulic fluids
Leak Rate5 @ 5000 PSI (345 BAR) drops/minMaximum Operating Pressure380 bar
Connection Sizen/aInstallation Torque37-41 lb-ft
Function2-WayWeight0.4 lb
DivisionHydraulic Cartridge Systems DivisionMaximum Operating Temperature+200 °F
Body Materialn/aConfigurationNeedle
Seal MaterialD-Ring (Standard)Needle TypeFine
Minimum Operating Temperature-37 °CMaximum Flow Rate16 Gal/min
Flow Rate60 L/minOperating Temperature-35 to +200 °F
Actuation TypeManual
Product resources

Literature and Reference Materials
