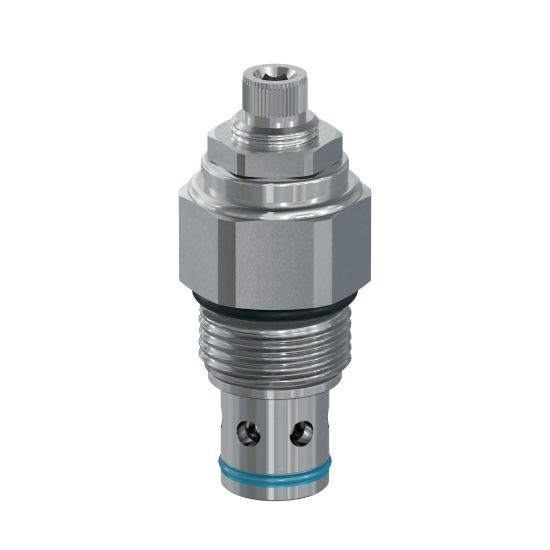

NVH101FT - Needle Flow Control Valves

Parker offers standard needle valves and needle valves with a reverse free-flow check. Parker’s needle valves are non-compensated adjustable orifices capable of flows up to 225 lpm (60 gpm) and pressures as high as 420 bar (6000 psi).

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU NVH101FT

$53.72/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Needle Type	Fine
Flow Rate	16 GAL/MIN, 60 L/MIN	Seal Material	D-Ring (Standard)
Maximum Inlet Pressure Rating	5500 PSI, 380 BAR	Adjustment Mechanism	Tamper Resistant
Maximum Inlet Pressure Rating	5500 psi	Maximum Flow Rate	60 L/min
Function	2-Way	Minimum Operating Temperature	-35 °F
Configuration	Needle	Connection Type	n/a
Needle Type	Fine	Seal Material	D-Ring (Standard)
Actuation Type	Manual	Operation Type	Manually operated
Connection Size	n/a	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Installation Torque	37-41 lb-ft	Weight	0.18 kg
Adjustment Mechanism	Tamper Resistant	Cavity Size	C10-2
Valve Material	All parts steel. All operating parts hardened steel	Maximum Operating Temperature	+93 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Flow Rate	16 Gal/min	Leak Rate	5 @ 5000 PSI (345 BAR) drops/min
Body Material	n/a	Maximum Operating Pressure	380 bar
